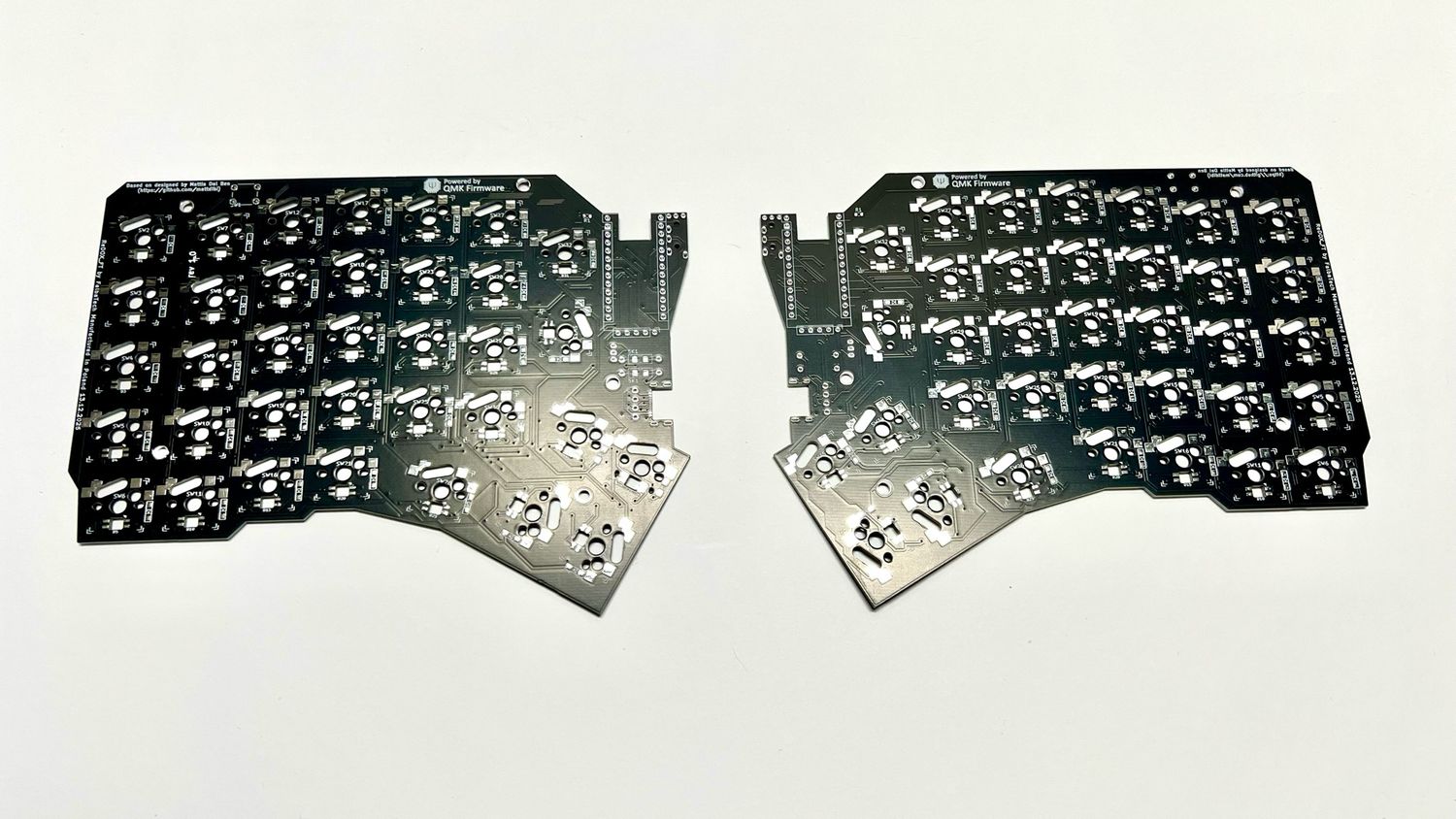

REDOX FT PCB Electrical Boards (Set of 2)

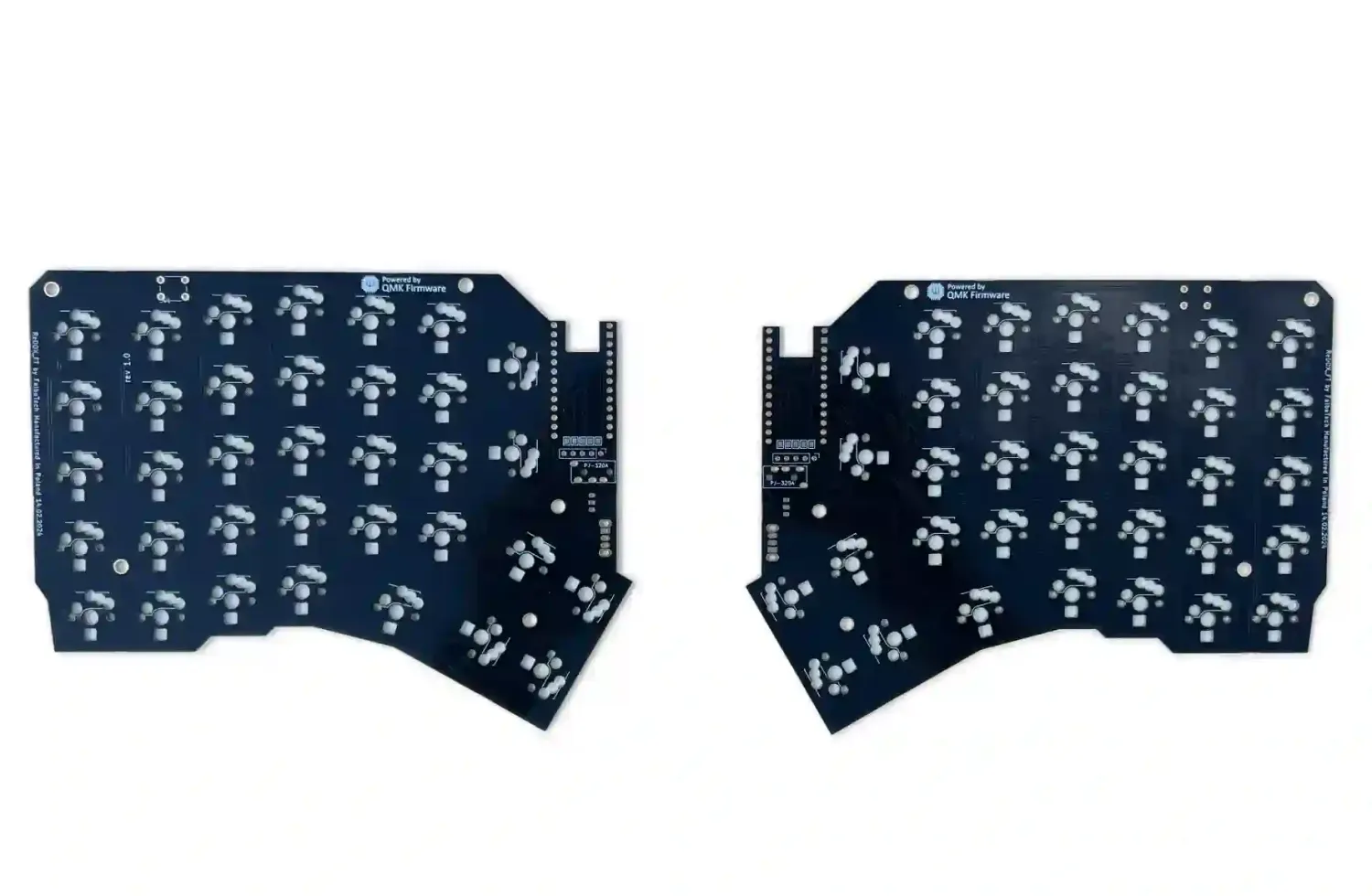

This PCB Set contains 2 reversible printed circuit boards (for left and right hand side) which are the base of the REDOX FT / REDOX FT Low Profile keyboard.

It is 1.55mm thick black laminated PCB, just like the legendary Cherry® G80 keyboards.
Copper layer is 70μm thick to ensure good electrical conductance.

The REDOX PCB is intended for do-it-yourself kits. FalbaTech cannot be held liable for damage caused by this PCB board; including, but not limited to, damage from improper installation. Use at your own risk.

Orginal REDOX PCB designed by Mattia Dal Ben (aka u/TiaMaT102)

This is Revision 14-02.2024 by FalbaTech

• We've added support for HotSwap Kailh cherry profile and low profile sockets.
• We moved the controller to the side of the keyboard, inspired by keyboards like Corne and Sofle. As a result, the entire setup is 8 mm lower compared to the classic version.
