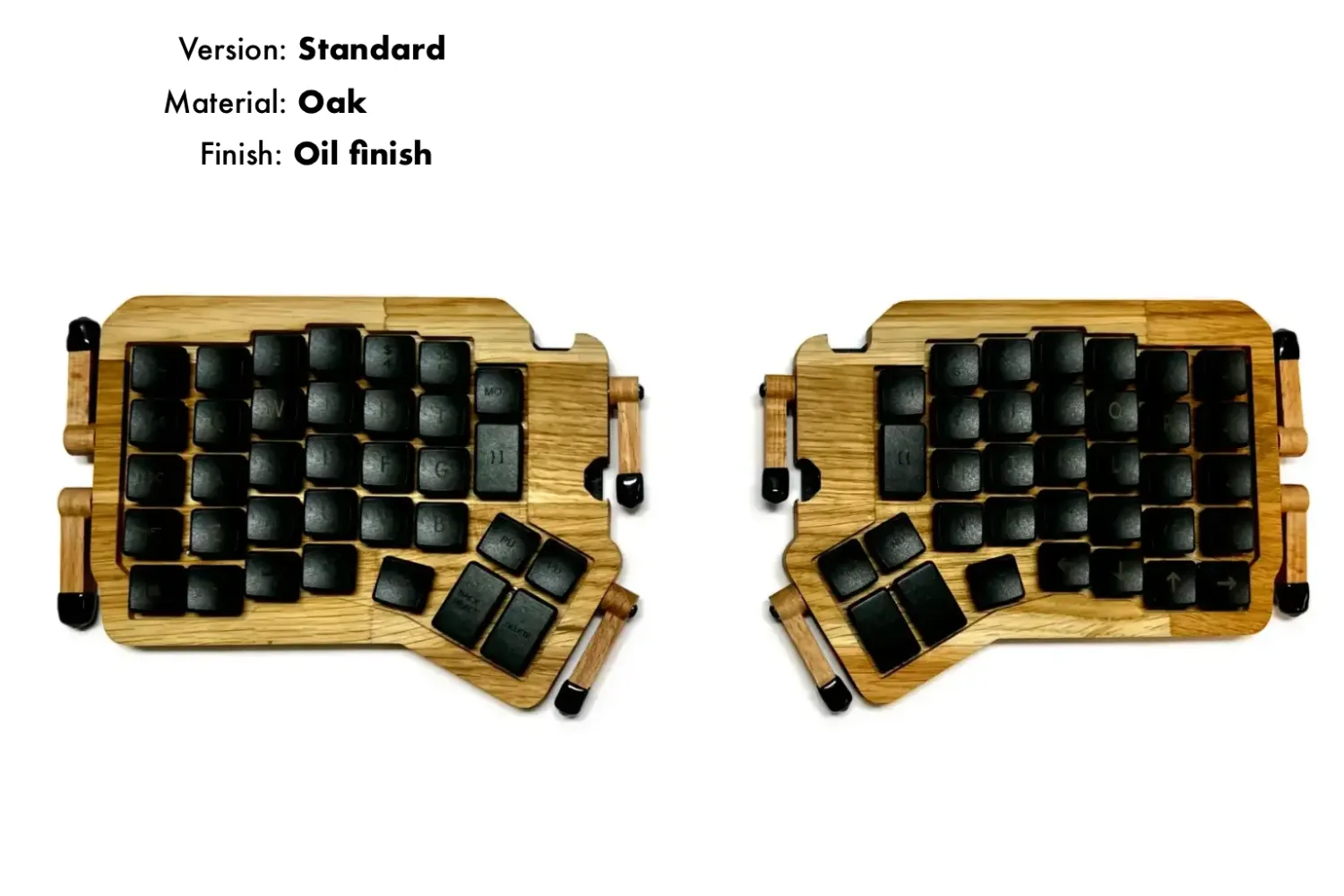

ReDOX FT Low Profile: 70 Key Split Ergonomic Keyboard on Kailh Choc, Wired or Wireless
€289.43
Connection
Please choose
Material
Please choose
Case version
Please choose
Finish case
Tilt / tent set for case (only petg case)
Select Cables Version
Please choose
Color cables:Black
Black
Red
Yellow
Green
Blue
Select Type Of Usb To Pc
Switches set
Please choose
Let us know which switches you’d like us to order for you, this will extend the order processing time by the duration of their delivery to us.
Enter your text
Keycaps
Please choose
Wrist rest set
Please choose
Do you have any suggestions or additional information?
Enter your text
oriBag™, Custom Fit Felt Case
Please choose
Premium Felt Desk Pad
Please choose
Finish
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Have questions?
ReDOX FT Low Profile: 70 Key Split Ergonomic Keyboard on Kailh Choc, Wired or Wireless
Product Details
ReDOX FT Low Profile, the same keyboard, half the height
This is the ReDOX FT with low-profile Kailh Choc v1 switches. Same 70 key layout, same thumb cluster, same ergonomics, only noticeably lower and shallower.
A lower profile changes two things. Your finger travels a shorter distance on every press, which adds up over a few thousand keystrokes a day. Your wrist also sits closer to the surface of the desk, so you need less support underneath it to keep it straight.
My name is Jan Falba. Since 2014 I have built every keyboard here myself, and yours gets built once you order it.
Who the ReDOX Low Profile is for
- You have been typing on a laptop and full-height switches feel like overkill.
- You want 70 keys in the flattest build possible.
- You carry your keyboard in a backpack and every millimetre counts.
- You prefer a shorter key travel and a faster return.
A new low-profile case build
Until now the switch plate was milled in one piece with the top of the case. At the thickness low-profile switches need, that meant cutting almost all of the material away.
The wooden case is now a frame with mounting points, and the switches are held by a separate 3D-printed PETG plate with a carbon-fibre finish. The build is stiffer and the hot swap sockets survive more switch changes.
Kailh Choc v1 switches
Choc is a different family from Cherry MX: a lower housing, shorter travel and different key spacing. Tactile and linear options are available. Hot swap works the same way, so switches push in by hand and come out with a puller, no soldering iron.
Keycaps are FlatKey Pro, 3D-printed from PETG in my workshop. They have a shallow dish for your fingertip and chamfered edges, so your finger finds the centre of the key without looking.
Why a split keyboard
Two independent halves let you place each one shoulder-width apart, exactly where your arms end. There is also room between the halves for a mouse, notebook or tablet. Add a tilt/tenting kit and the halves angle inward until your thumbs sit higher than your pinkies.
Wired or wireless
| Feature | Wired | Wireless |
|---|---|---|
| Firmware | VIAL | ZMK |
| Connection | USB-C | Bluetooth LE and USB-C |
| Configuration | VIAL app or compatible browser version | ZMK Studio, browser |
| Controller | RP2040 | nice!nano v2 |
| Power | from the USB cable | two 1000 mAh batteries, each charged separately over USB-C |
The wireless version can also send keystrokes over USB-C when the left half is connected to the computer. Each half has its own 1000 mAh battery, however, and must be charged separately.
Remap it without compiling firmware
Keys, layers and the main layout functions are changed directly in the VIAL app or ZMK Studio, depending on the version you choose. Connect the keyboard, edit the layout and save it.
Wood and PETG
I mill the frame from bamboo or acacia on my own CNC and hand-finish it with two coats of a lacquer also intended for finishing wooden toys. A full PETG version is available too, in black or white.
How the two halves work
In the standard FalbaTech configuration the left half connects to your computer and the right half talks to it wirelessly or over a cable, depending on the version. Together they behave as a single keyboard.
If you are after something for one-handed use, there is a separate ReDOX FT Low Profile Solo.
One person builds it. The same person repairs it
I mill, solder, sand, finish, test and pack every keyboard myself. I repair every keyboard I have ever built. You pay for parts and shipping only.
Frequently asked questions
How is Choc different from Cherry MX? Choc is lower, has shorter travel and different key spacing. MX keycaps do not fit it.
Can I switch to Cherry MX later? Not in the same case. It is a separate build, so the profile is a decision you make at the start.
How long does it take to make? The standard lead time is around 15 working days.
Specification
Split keyboard • low profile • column-staggered ergonomic layout • 70 keys • Kailh Choc v1 switches • hot swap sockets • FlatKey Pro PETG keycaps • PETG switch plate with carbon finish • Bluetooth LE • USB-C • VIAL firmware • ZMK Studio firmware • RP2040 controller • nice!nano v2 controller • 1000 mAh batteries • bamboo or acacia frame • Cosmos finish • tilt and tenting kit • macOS, Windows, Linux • handmade in Poland
