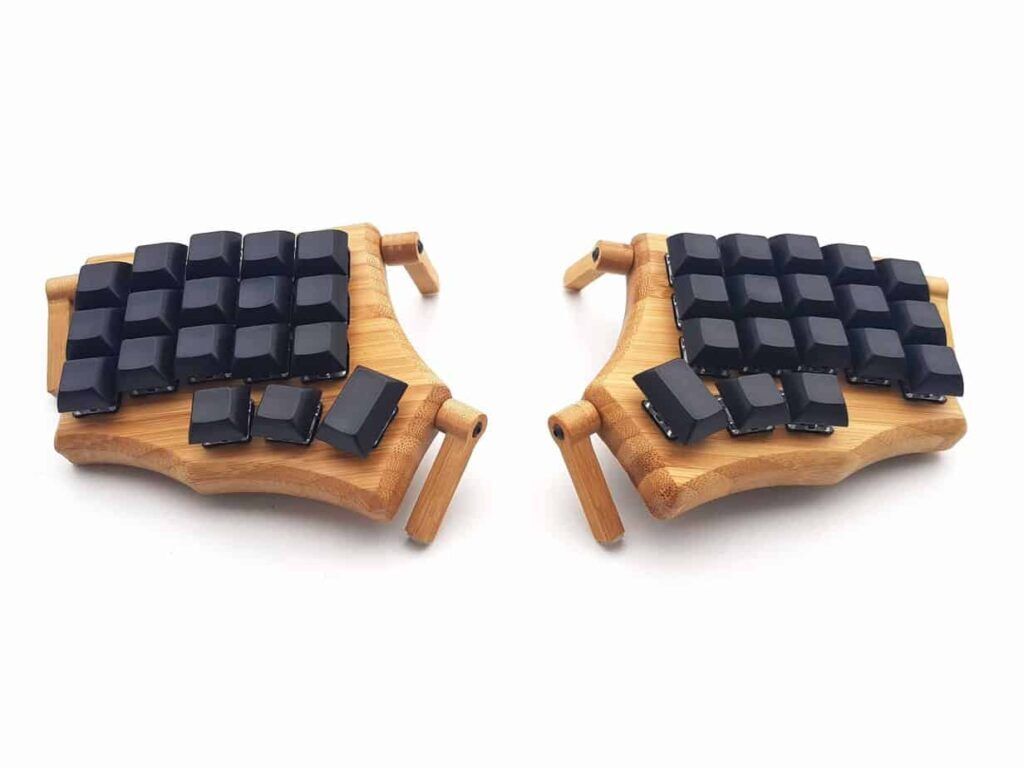

MiniDox FT: 36 Key Split Ergonomic Keyboard, Wired or Wireless
€190.24
Connection
Please choose
Material
Please choose
Case
Finish case
Select Cables Version
Please choose
Tilt / tent set for case
Color cable:Black
Blue
Yellow
Red
Green
Black
Type of USB to your PC
Switches set
Please choose
Let us know which switches you’d like us to order for you, this will extend the order processing time by the duration of their delivery to us.
Enter your text
Keycaps Set
Please choose
Do you have any suggestions or additional information?
Enter your text
Wrist rest set
Please choose
HotSwap socket
oriBag™, Custom Fit Felt Case
Please choose
Premium Felt Desk Pad
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Have questions?
MiniDox FT: 36 Key Split Ergonomic Keyboard, Wired or Wireless
Product Details
MiniDox FT, three rows and thumbs
The MiniDox is a classic among small split keyboards. Thirty-six keys: three rows for your fingers and a thumb cluster. Nothing more, because nothing more is needed once your layers are laid out well.
It predates most of today's minimal designs, which is exactly why it feels finished. People come back to it after years of experimenting with other layouts.
My name is Jan Falba. Since 2014 I have built every keyboard here myself: I mill the case on my own CNC, solder the electronics, test it on macOS, Windows and Linux, and pack it for shipping. Yours gets built once you order it.
Who the MiniDox is for
- You want a small split keyboard with a proven layout.
- You like standard Cherry MX switches but not a large keyboard.
- You already have experience with layers, or are ready to build your own.
- You want a compact setup without dropping to 34 keys.
Why a split keyboard
A regular keyboard sits your hands too close together and angles your wrists inward. Two independent halves let you place each one shoulder-width apart, exactly where your arms end. There is also room between the halves for a mouse, notebook or tablet.
Add a tilt/tenting kit and the halves angle inward until your thumbs sit higher than your pinkies. This changes the position of your hands and forearms, rather than simply adding a soft pad under your wrists.
Thirty-six keys in a column-staggered layout
The MiniDox uses a column-staggered ergonomic layout. Keys sit in straight columns, and each column is offset to match the real length of the finger that reaches it. Your index finger reaches farther, while your pinky has a shorter reach.
Numbers, symbols and arrows live on layers. The first few days can be frustrating. Your speed returns with practice, and once you adjust, a regular keyboard starts to feel strange.
Wired or wireless
| Feature | Wired | Wireless |
|---|---|---|
| Firmware | VIAL | ZMK |
| Connection | USB-C | Bluetooth LE and USB-C |
| Configuration | VIAL app or compatible browser version | ZMK Studio, browser |
| Controller | RP2040 | nice!nano v2 |
| Power | from the USB cable | two 1000 mAh batteries, each charged separately over USB-C |
The wireless version can also send keystrokes over USB-C when the left half is connected to the computer. Each half has its own 1000 mAh battery, however, and must be charged separately.
The wireless version costs more because each half needs its own controller and its own battery.
Remap it without compiling firmware
Keys, layers and the main layout functions are changed directly in the VIAL app or ZMK Studio, depending on the version you choose. There is no need to compile firmware yourself, create a GitHub account or wait for a build to finish.
Connect the keyboard, edit the layout and save it. The new configuration works immediately.
Switches you change without soldering
Hot swap sockets mean you change switches without a soldering iron. Switches push in by hand and come out with a simple switch puller.
Eight Cherry MX options, from light 45 g Reds to heavy 70 g clicky Greens. I source them directly from Germany and use genuine Cherry MX switches.
Wood, not moulded plastic
I mill the case from bamboo or acacia on my own CNC. Every piece has different grain, so no two keyboards look alike. Wood softens the sound of typing and feels warmer under your hand than aluminium.
It is hand-finished with two coats of a lacquer also intended for finishing wooden toys. If you prefer a modern look, there is a 3D-printed PETG case in black or white.
How the two halves work
In the standard FalbaTech configuration the left half connects to your computer and the right half talks to it wirelessly or over a cable, depending on the version. Together they behave as a single keyboard.
If you are after something for one-handed use, there is a separate MiniDox FT Solo.
One person builds it. The same person repairs it
I mill, solder, sand, finish, test and pack every keyboard myself. I repair every keyboard I have ever built, whether it left this workshop in 2014 or yesterday. You pay for parts and shipping, the work itself is on me.
Frequently asked questions
How is it different from the Corne? The Corne has 42 keys, the MiniDox 36. The Corne adds an outer column on each side; the MiniDox is smaller and more radical.
Are 36 keys enough? Yes, thanks to layers, but it takes some learning. If you want numbers under your fingers straight away, look at the ReDOX FT.
Do I need to know how to code? No. You edit the layout visually in the VIAL app or ZMK Studio, depending on the version you choose.
How long does it take to make? The standard lead time is around 15 working days. Every keyboard is built by hand after the order is placed. During busier periods, or when storms cause power outages in the rural area where my workshop is located, it may take slightly longer.
Will I get an invoice? Yes. FalbaTech is a registered Polish business.
Specification
Split keyboard • column-staggered ergonomic layout • 36 keys • hot swap sockets • Cherry MX switches • Bluetooth LE • USB-C • VIAL firmware • ZMK Studio firmware • RP2040 controller • nice!nano v2 controller • 1000 mAh batteries • PETG, bamboo or acacia case • tilt and tenting kit • macOS, Windows, Linux • handmade in Poland
