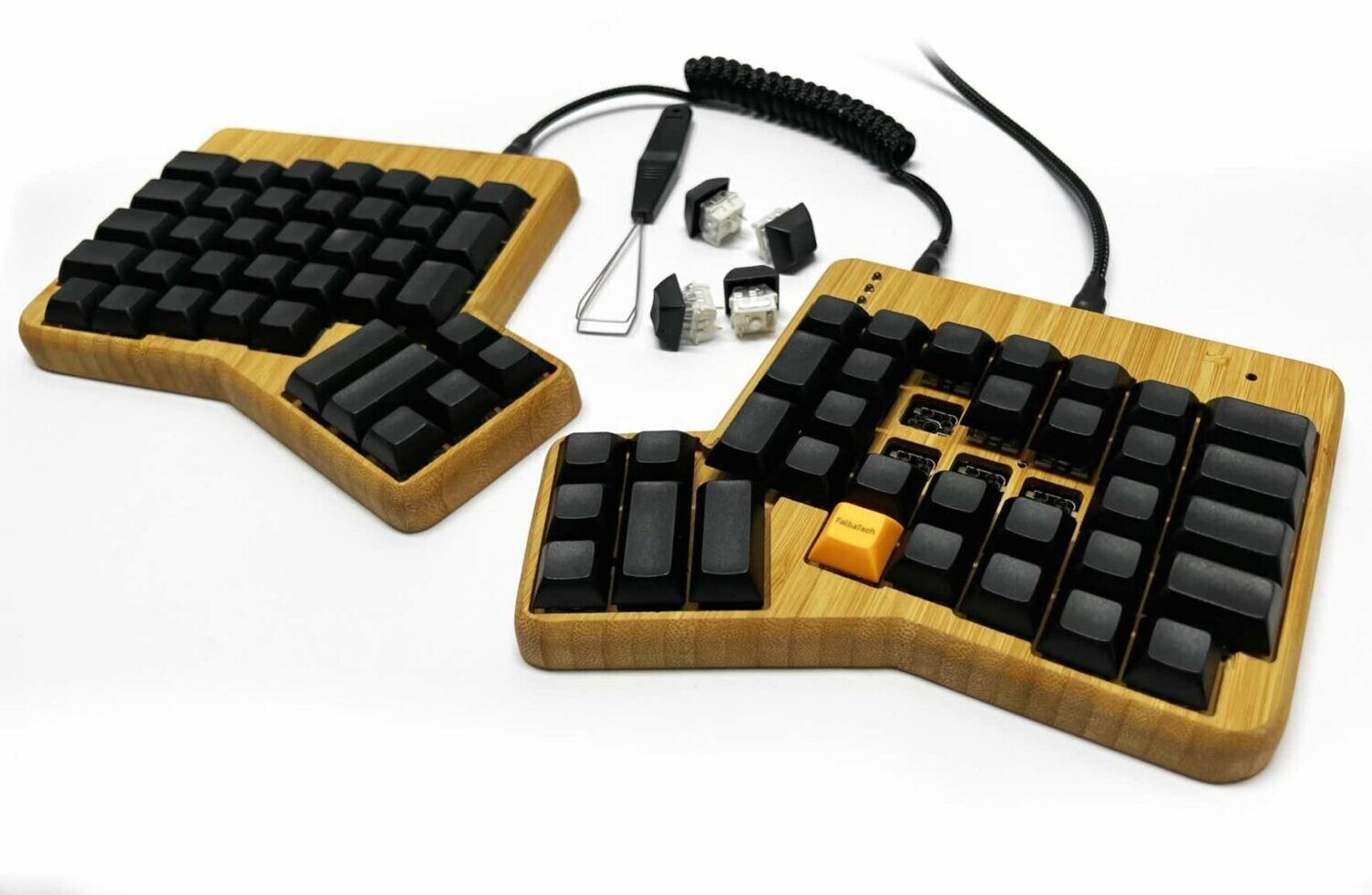

ErgoDox FT DIY Kit – USB-C Split Ergonomic Keyboard

ErgoDox FT DIY Kit – Build Your Own Premium Ergonomic Keyboard (USB-C Split | Hot-Swap | FalbaTech)

The ErgoDox FT DIY Kit is a complete set for makers who want to build their own modern version of the legendary ErgoDox ergonomic keyboard.

This kit combines ergonomic split design, hot-swap flexibility, premium materials, and full customization, making it ideal for developers, writers, and enthusiasts.

All components are carefully matched, organized, and ready for self-assembly and soldering.

🔧

Key Features

DIY Hot-Swap Build

All PCBs include hot-swap sockets, allowing you to install or replace Cherry MX-compatible switches without soldering them directly.

Perfect for experimenting with typing feel, productivity, and gaming performance.

Switch Compatibility

Compatible with all Cherry MX-style switches (not included).

Recommended options:

Brown, Black, Red, Silent Red, Silver Speed, Clear, Blue, Green

(original German Cherry MX switches from EU distributors)

New USB-C Interconnect (2026 Revision)

This updated version features a USB-C connection between both halves, replacing the older TRRS cable.

• more reliable connection
• easier cable management
• improved responsiveness and overall performance

👉 based on the latest PCB revision from March 13, 2026

Ergonomic Split Layout

Designed to reduce wrist strain and support natural hand positioning.

• Dimensions per half: 197 × 171 × 24 mm
• Weight: approx. 600 g per half
• Compatible with optional tenting / tilt systems

🧩

Case Options & Variants

Choose your preferred layout:

• Standard – compact, without wrist rests
• FullHand Ver.1 – integrated wrist rests, rounded profile
• FullHand Ver.2 – flatter ergonomic wrist rest design
• Joined (Butterfly) – both halves fused into one body

🌿

Materials

Classic Bamboo

CNC-machined, including the switch plate.

Reduces metallic resonance and creates a softer acoustic profile.

Solid Beech Wood

Durable hardwood, hand-finished for long-term use.

Steel Plate Version

For users who prefer a stronger, more rigid typing feel.

3D-Printed PETG

Available in black or white, with custom colors (+€10 via Tip option).

🎨

Finishing Options

• Natural oil (3V3 countertop oil)
• Dark stain + oil
• Eco black paint (child-safe, toy-grade)

✨

Geometric Shimmer™ PETG Case

All PETG versions include FalbaTech’s signature Geometric Shimmer™ texture for:

• improved grip
• modern appearance
• scratch-resistant surface feel

Available in black or white PETG, with custom colors on request.

🧳

Optional Accessories

• oriBag™ Felt Sleeve – handmade case for ErgoDox FT
• Desk Felt Mat (4 mm) – black or grey PET felt
• TiltMag™ Tent Kit – MagSafe tripod system for adjustable tenting

🛠️

Handcrafted in Poland

All wooden and PETG cases are CNC-machined and hand-finished in our small workshop in Poland.

Due to the nature of natural materials, slight variations and marks may occur – this is part of the artisanal character of each piece.

⚠️

Important

This is a DIY soldering kit.

Assembly and soldering are performed at your own responsibility.
